Straight line clamp

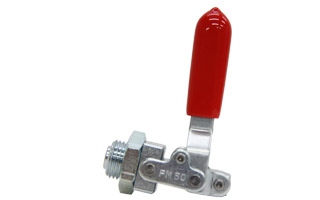

No.FM50 (Straight Line)

CAD data
Category
Model Number No.FM50
Weight 105g
Holding Capacity 0.9kN(90kgf)
Material Steel(SPCC)
Mounting Method Bracket Mounting
Surface finish Trivalent Chromate

Stroke 19mm
●Feature
A toggle clamp is designed to hold a workpiece by one-action operation after initial setting.
It is easy to introduce and low cost compare with air or hydraulic.
●Application
Optimal for repetitive work
For inspection, welding, assembly, machining and press fit.
You can use for woodworking and DIY.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.

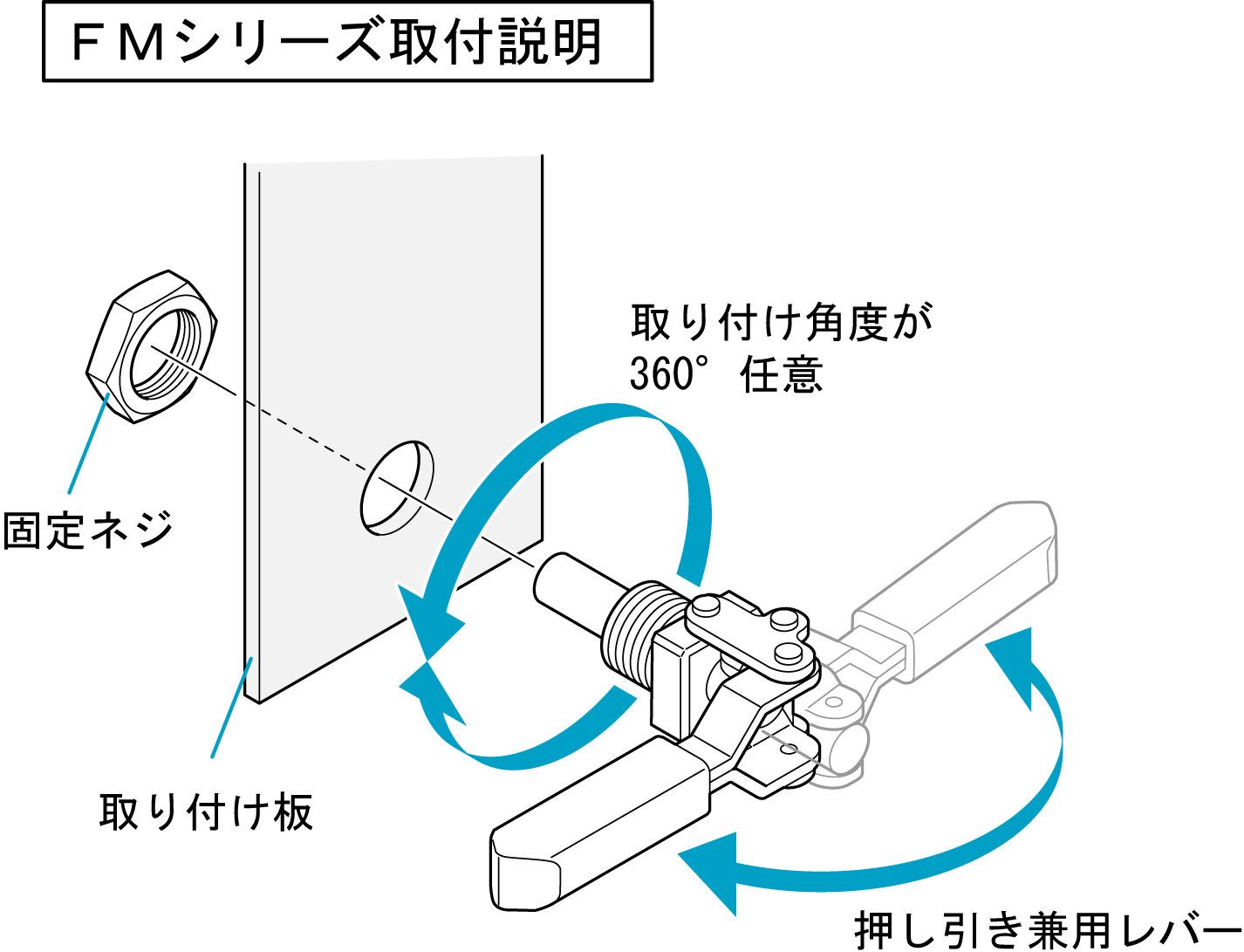

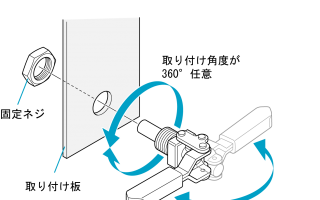

Instruction - Toggle Clamp
