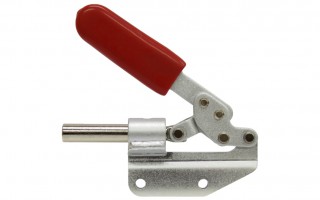

KAKUTA Toggle clamp

Straight line clamp

No.02S (Straight Line)

•

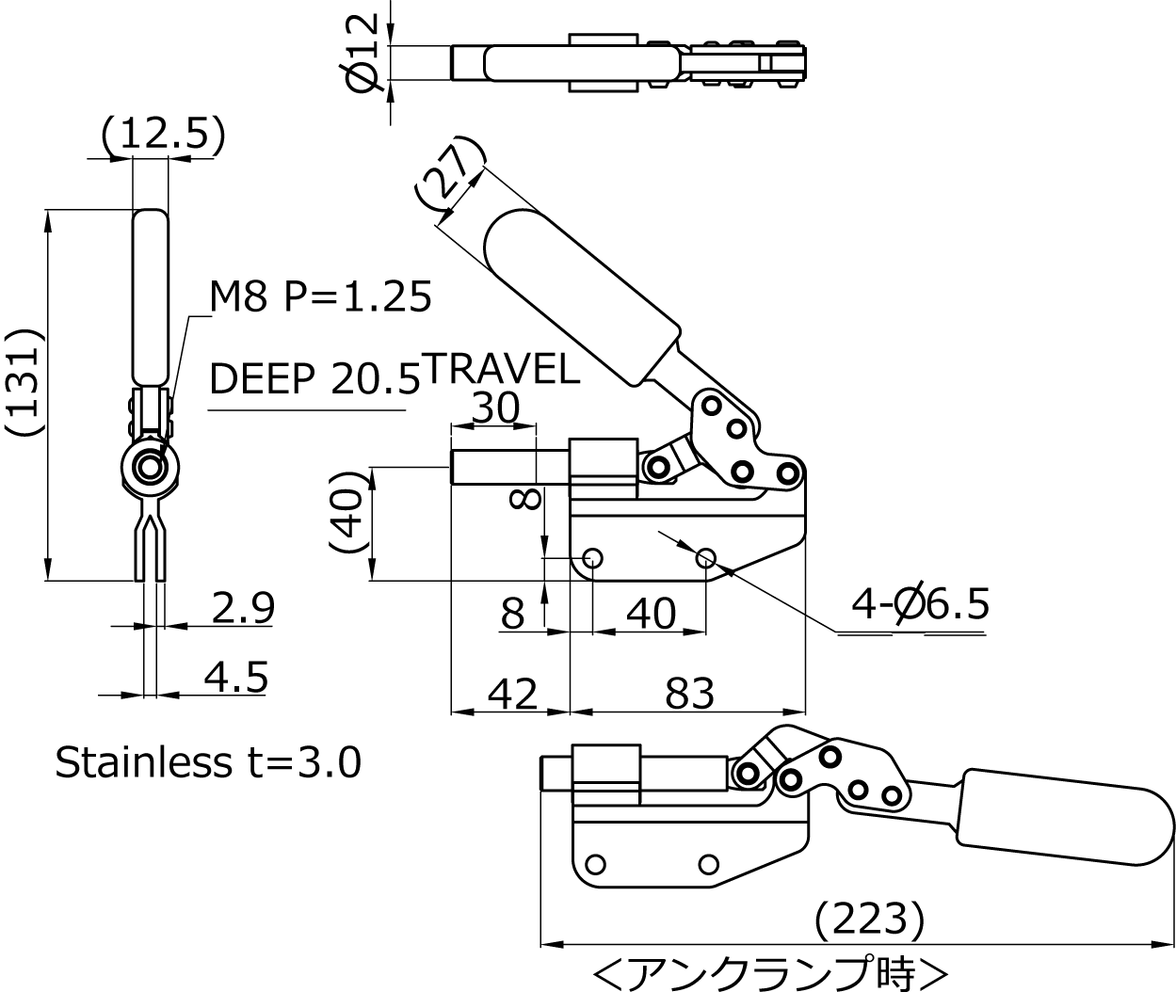

CAD data

DXF(2D) IGES STEP

Category	Straight Line
Model Number	No.02S
Weight	380g
Holding Capacity	2.0kN(200kgf)
Material	Steel（SPCC）
Mounting Method	Straight Base
Surface finish	Nickel Plating

Straight line clamp

Stroke 30mm
●Feature
A toggle clamp is designed to hold a workpiece by one-action operation after initial setting.
It is easy to introduce and low cost compare with air or hydraulic.
●Application
Optimal for repetitive work
For inspection, welding, assembly, machining and press fit.
You can use for woodworking and DIY.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.

Instruction - Toggle Clamp

• Hand Vise Pliers
• Hold down clamp
• Straight line clamp
• Dual Clamp
• Hook Clamp
• Air clamp
• Accessory

Search Toggle Clamp
