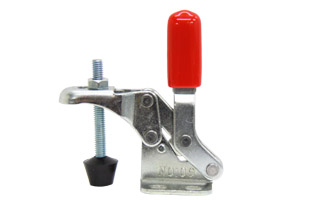

KAKUTA Toggle clamp

Product Information

No.09 (Hold down clamp (Vertical Handle))

•

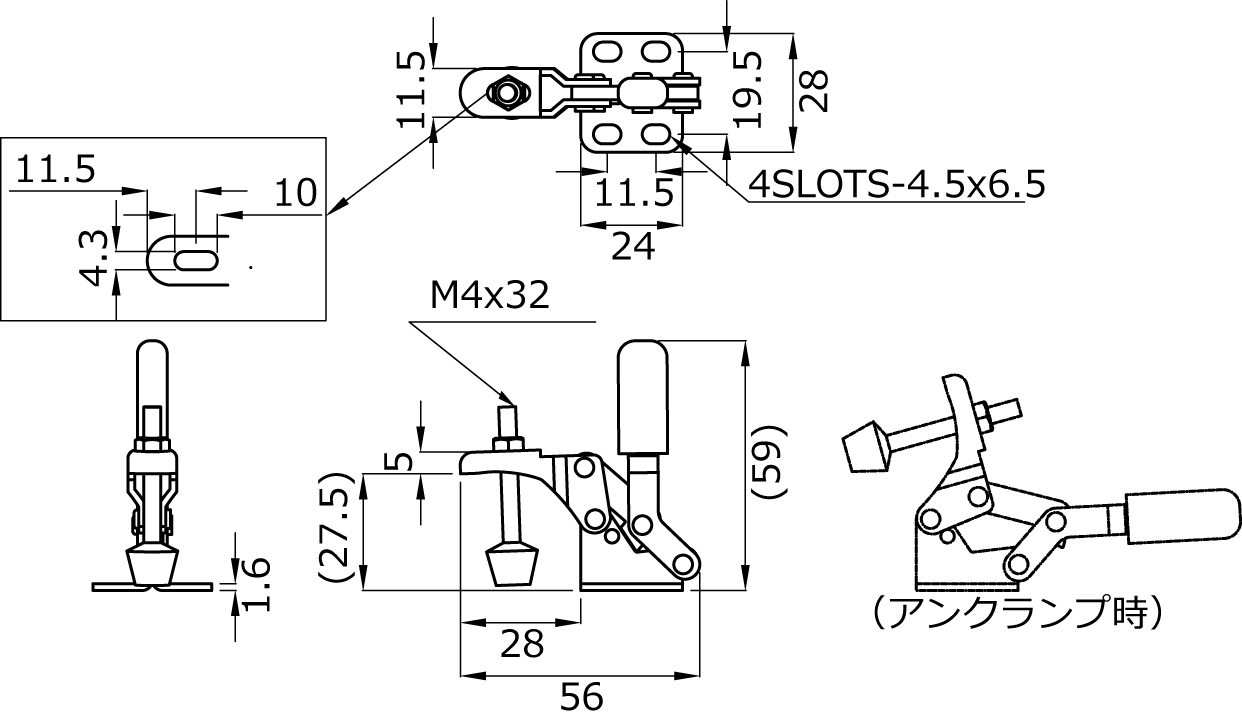

CAD data

DXF(2D) IGES STEP

Category	Hold down Clamp
Model Number	No.09
Weight	45g
Holding Capacity	0.3kN(30kgf)
Material	Steel（SPCC）
Mounting Method	Flange Base
Surface finish	Nickel Plating

●Feature and Application
A toggle clamp is designed to hold a workpiece by one-action operation after initial setting.
It is easy to introduce and low cost compare with air or hydraulic.
Optimal for repetitive work.
For inspection, welding, assembly, machining and press fit.
You can use for woodworking and DIY.
●Caution
The holding capacity is for reference. Max. value is by using hex bolt.
The holding capacity will decrease toward the tip of clamp arm.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
