KAKUTA Toggle clamp

Air clamp

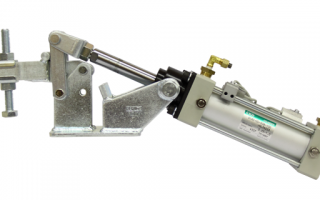

No.101S (Air Clamp (Hold down clamp))

•

CAD data

DXF(2D) IGES STEP

Category	Air Clamp
Model Number	No.101S
Weight	4650g
Holding Capacity	1.7kN(0.5Mpa時)
Material	Steel（SPCC）
Mounting Method	Flange Base
Surface finish	Main Body :Lubrite Process Other parts:Trivalent Chromate,BLACK OXIDE FINISH,Painting

Air clamp is optimal for automation equipments.
You can operate multiple air clamps at same time that improve your work efficiency when you use in inside of machine or holding a huge workpiece.

The holding capacity is maximum value(Air supply pressure at 1.0MPa)
Please use at 0.4 - 0.6MPa (40 - 60% of holding capacity)
To protect sputter and dust, a heat-resistant bellows can attach to air clamp.

Example of Air clamp Schematic

●Air clamp Instraction
Hold down type perform maximum holding force at the nearest position of the body and it is the weakest force at the tip of the arm.
●Changing direction of air fitting
When you change the direction of the air fitting, remove the thread sealing tape first then wind new sealing tape and change the direction.
If do not remove the sealing tape and change direction, there is a possibility of air leaking.
●Use in High Temperature
Optimal operation tempareture range is 5 to 60 deg.C.
Do not use at colder than 5deg.C or higher than 60deg.C.
If you will use at higher than 60deg.C, must measure a thermal insulation and shield.
If do not measure, there is a possibility of melting O-ring inside of air cylinder and air leaking.
We do not take a responsibility that failure due to using at low or high tempareture.
Instruction - Air Clamp
●Required at Clean Environment
There is a possibility that oozing lubricants from air cylinder due to condition as higher than 40deg.C, keep pressing and low operation ratio.
If you use in the place that requested cleanness, be sure the above.
