KAKUTA Toggle clamp

Hand Vise Pliers

No.15M (Hand Vise Plier)

•

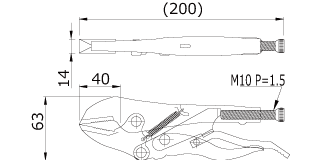

CAD data

DXF(2D)

Category	Hand Vice
Model Number	No.15M
Weight	480g
Holding Capacity	5.8kN(580kgf)
Material	Steel（SPCC）
Mounting Method	-
Surface finish	Trivalent Chromate

●Feature and Application Margin scissors 0 - 20mm Adjust margin scissors with a bolt. One-action to hold workpieaces and easy to use. For inspection, welding, assembly, machining and press fit. ●Caution The holding capacity is for reference. Do not give the shock, vibration and internal pressure which causes a failure. Caution to pinch the fingers.
