KAKUTA Toggle clamp

Hand Vise Pliers

No.18 (Standard Hand Vise)

•

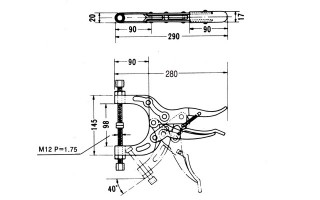

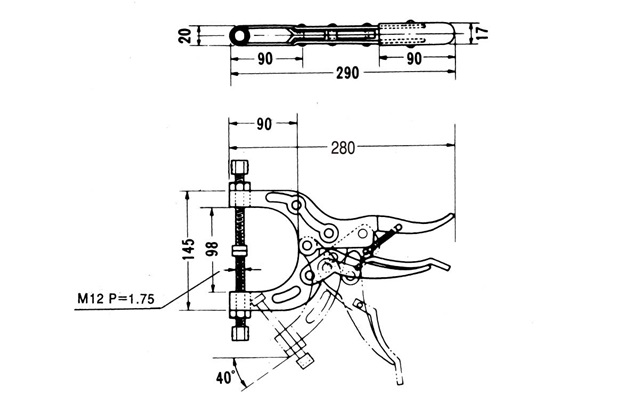

CAD data

Category	Hand Vice
Model Number	No.18
Weight	1050g
Holding Capacity	2.0kN(200kgf)
Material	Steel（SPCC）
Mounting Method	-
Surface finish	Trivalent Chromate

●Feature and Application
Margin scissors 0 - 80mm
Adjust margin scissors with a bolt.
One-action to hold workpieaces and easy to use.
For inspection, welding, assembly, machining and press fit.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
