KAKUTA Toggle clamp

Hand Vise Pliers

No.3L (Standard Hand Vise)

•

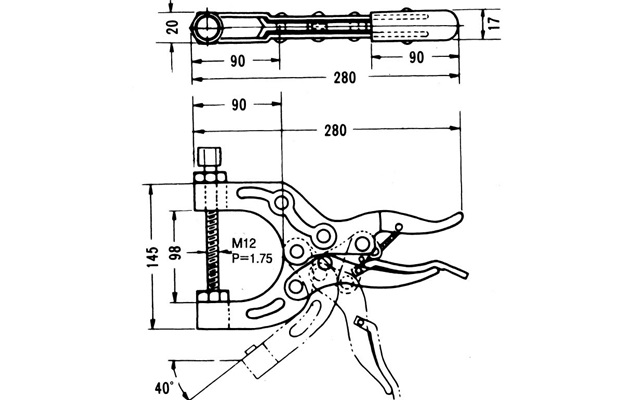

CAD data

Category	Hand Vice
Model Number	No.3L
Weight	1005g
Holding Capacity	2.0kN(200kgf)
Material	Steel（SPCC）
Mounting Method	-
Surface finish	Nickel Plating

●Feature and Application
Margin scissors 0 - 90mm
Adjust margin scissors with a bolt.
One-action to hold workpieaces and easy to use.
For inspection, welding, assembly, machining and press fit.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
