KAKUTA Toggle clamp

Hook Clamp

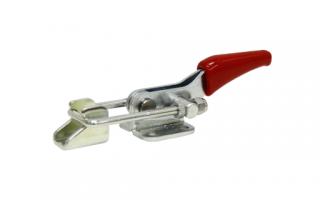

No.FA100 (Hook Clamp (Standard Type))

•
•

CAD data

DXF(2D) IGES STEP

Category	Hook Type
Model Number	No.FA100
Weight	63g
Holding Capacity	1.06kN(106kgf)
Material	Steel（SPCC）
Mounting Method	Flange Base
Surface finish	Trivalent Chromate

Stroke 29mm
●Feature and Application

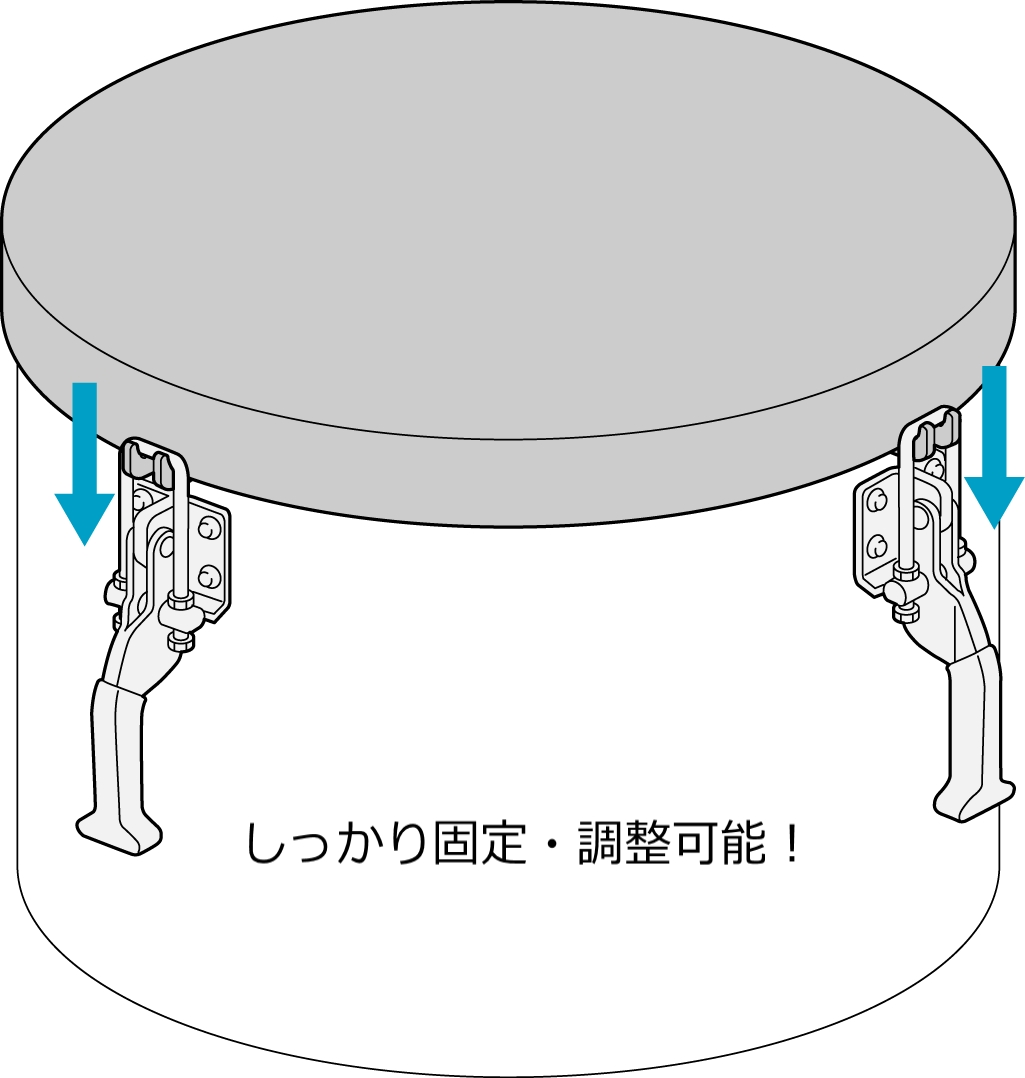

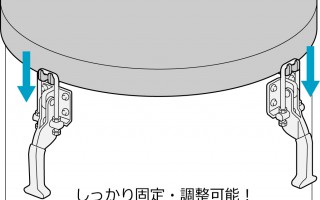

Hook the U or hook type bar and pull to hold.
Optimal for machine and equipment parts.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
