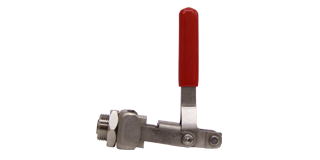

KAKUTA Toggle clamp

Straight line clamp

No.FM150-2S (Straight Line)

•
•

CAD data

DXF(2D) IGES STEP

Category	Straight Line
Model Number	No.FM150-2S
Weight	265g
Holding Capacity	1.5kN(150kgf)
Material	Stainless Steel
Mounting Method	Bracket Mounting
Surface finish	None

Stroke 38mm
●Feature
A toggle clamp is designed to hold a workpiece by one-action operation after initial setting.
It is easy to introduce and low cost compare with air or hydraulic.
●Application
Optimal for repetitive work
For inspection, welding, assembly, machining and press fit.
You can use for woodworking and DIY.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
