KAKUTA Toggle clamp

Straight line clamp

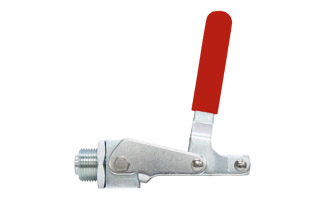

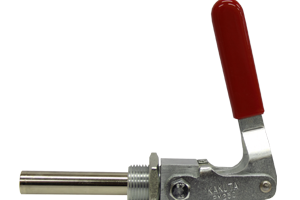

No.FM250 (Straight Line)

•
•
•

CAD data

DXF(2D) IGES STEP

Category	Straight Line
Model Number	No.FM250
Weight	740g
Holding Capacity	3.2kN(320kgf)
Material	Steel（SPCC）
Mounting Method	Bracket Mounting
Surface finish	Trivalent Chromate

Stroke 67mm
●Feature
A toggle clamp is designed to hold a workpiece by one-action operation after initial setting.
It is easy to introduce and low cost compare with air or hydraulic.
●Application
Optimal for repetitive work
For inspection, welding, assembly, machining and press fit.
You can use for woodworking and DIY.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
