KAKUTA Toggle clamp

Hook Clamp

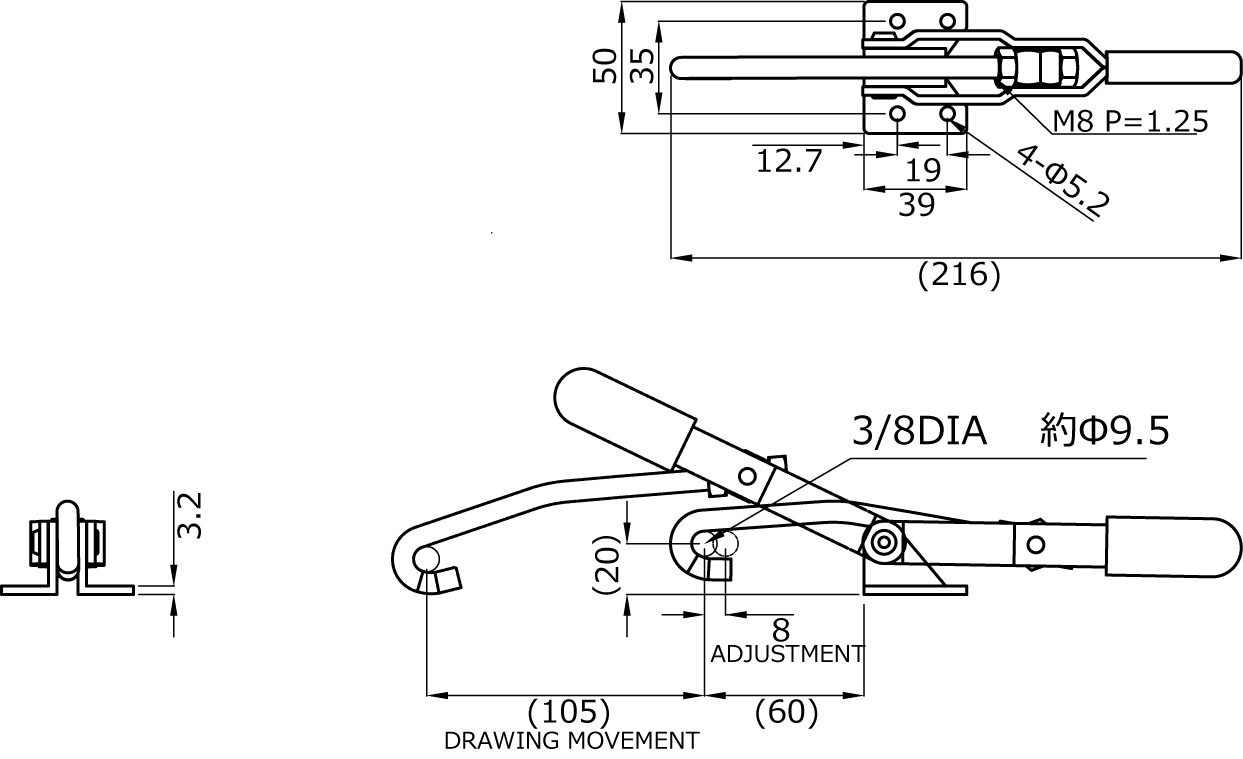

No.PA250 (Hook Clamp)

•

CAD data

DXF(2D) IGES STEP

Category	Hook Type
Model Number	No.PA250
Weight	275g
Holding Capacity	1.7kN(170kgf)
Material	Steel（SPCC）
Mounting Method	Flange Base
Surface finish	Nickel Plating

Stroke 105mm
●Feature and Application
Hook the U or hook type bar and pull to hold.
Optimal for machine and equipment parts.
●Caution
The holding capacity is for reference.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
