KAKUTA Toggle clamp

Dual Clamp

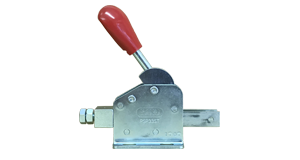

DualClamp PSP-33ST（Straight Line）

•
•

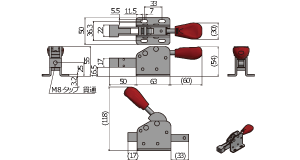

CAD data

DXF(2D) IGES STEP

Category	Dual Clamp
Model Number	PSP-33ST
Weight	497g
Holding Capacity	2.5kN(250kgf)
Material	Steel（SPCC）
Mounting Method	Flange Base
Surface finish	Trivalent Chromate

Straight Line
●Feature
Dual clamp realizes high safety and high performance by having a cam mechanism in addition to toggle clamp that can hold a sliding axis by cam.
There is a version with safety lock to prevent unclamp by vibration, backlash and mis-operation.
*The grip has been developed based on ergonomics fits to hands and reduce physical burden.
*Need to adjust the bolt length before use.
*Do not use in lathe/turning and at high tempareture as welding.
●Caution
The holding capacity is for reference.
The holding capacity decrease toward the tip of clamp arm.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
