KAKUTA Toggle clamp

Accessory

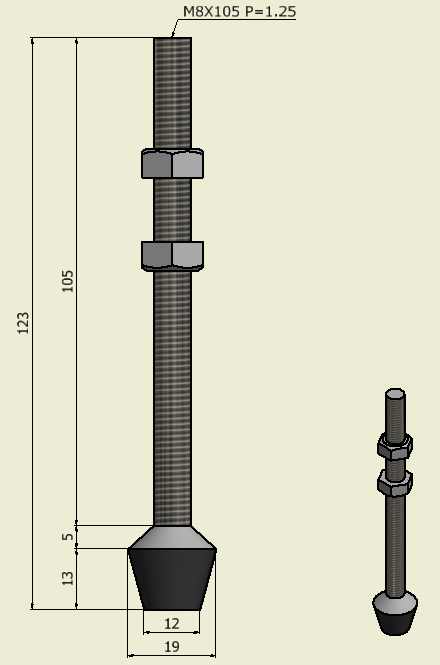

Rubber tip bolt M8X105

•

CAD data

DXF(2D) IGES STEP

Category	Accessory
Model Number	Rubber tip bolt M8x105
Weight	53g
Holding Capacity
Material	-
Mounting Method	-
Surface finish	Trivalent Chromate

ManufactuRubber material: Nitrilering temperature: 170-180C Endurance temperature: 80C High temperature: 150-160C (Max. 30min) Nominal diameter x Underhead length M8ｘ105 Hardness: Shore 70C Bolt Material: Steel Rubber material: Nitrile
