KAKUTA Toggle clamp

Accessory

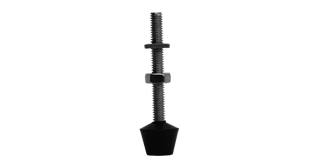

Rubber tip Stainless bolt M4X32

•

CAD data

DXF(2D) IGES STEP

Category	Accessory
Model Number	Rubber tip Stainless bolt M4x32
Weight	6g
Holding Capacity
Material	-
Mounting Method	-
Surface finish	None

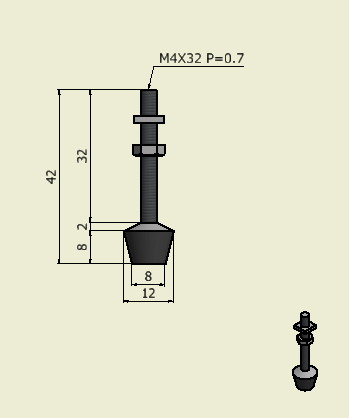

ManufactuRubber material: Nitrilering temperature: 170-180C Endurance temperature: 80C High temperature: 150-160C (Max. 30min) Nominal diameter x Underhead length M4x32 Hardness: Shore 70C Bolt Material: Stainless steel Rubber material: Nitrile
