Dual Clamp

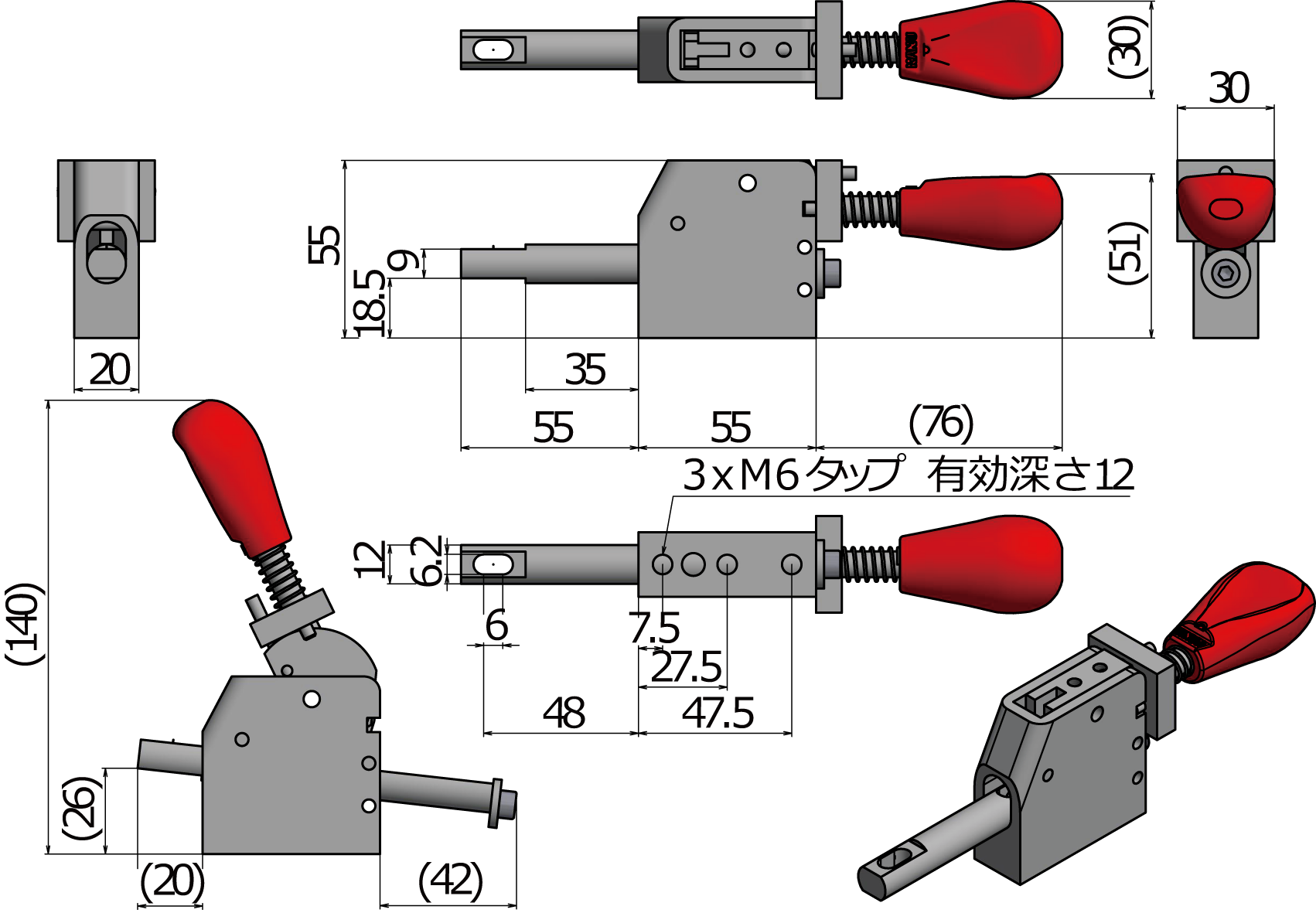

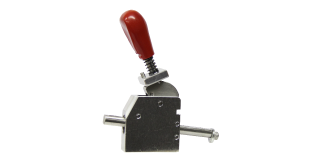

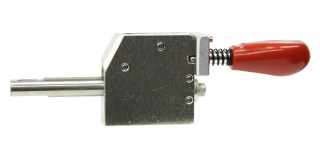

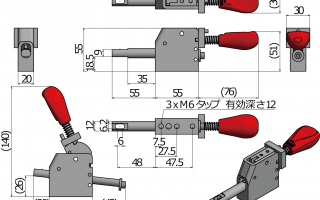

DualClamp SUD-34ST-L (Hold Down w/Lock) <Built-to-order>
Category | Dual Clamp |
---|---|
Model Number | SUD-34ST-L |
Weight | 320g |
Holding Capacity | 0.3kN(30kgf) |
Material | Aluminum+Stainless Steel+Others Materials |
Mounting Method | Flange Base |
Surface finish | Body:Aluminum、Others :Stainless Steel(Surface is untreated)、SPRING:SWP-A、Steel Ball:SUJ2、Grip:Plastic(P.P) |
Hold Down w/Lock
●Feature

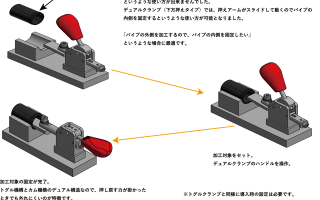

Dual clamp realizes high safety and high performance by having a cam mechanism in addition to toggle clamp that can hold a sliding axis by cam.
Dual Clamp have been successfully tested for more than 1 million cycles and hold a workpiece stably for long time that reduce the cost of replacement.
There is a version with safety lock to prevent unclamp by vibration, backlash and mis-operation.
*The grip has been developed based on ergonomics fits to hands and reduce physical burden.
*Need to adjust the bolt length before use.
*Do not use in lathe/turning and at high tempareture as welding.
●Caution
The holding capacity is for reference.
The holding capacity decrease toward the tip of clamp arm.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
