KAKUTA Toggle clamp

Dual Clamp

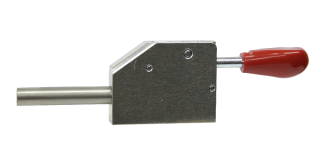

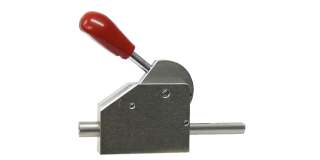

DualClamp YSP-50ST （Straight Line） ＜Built-to-order＞

•
•

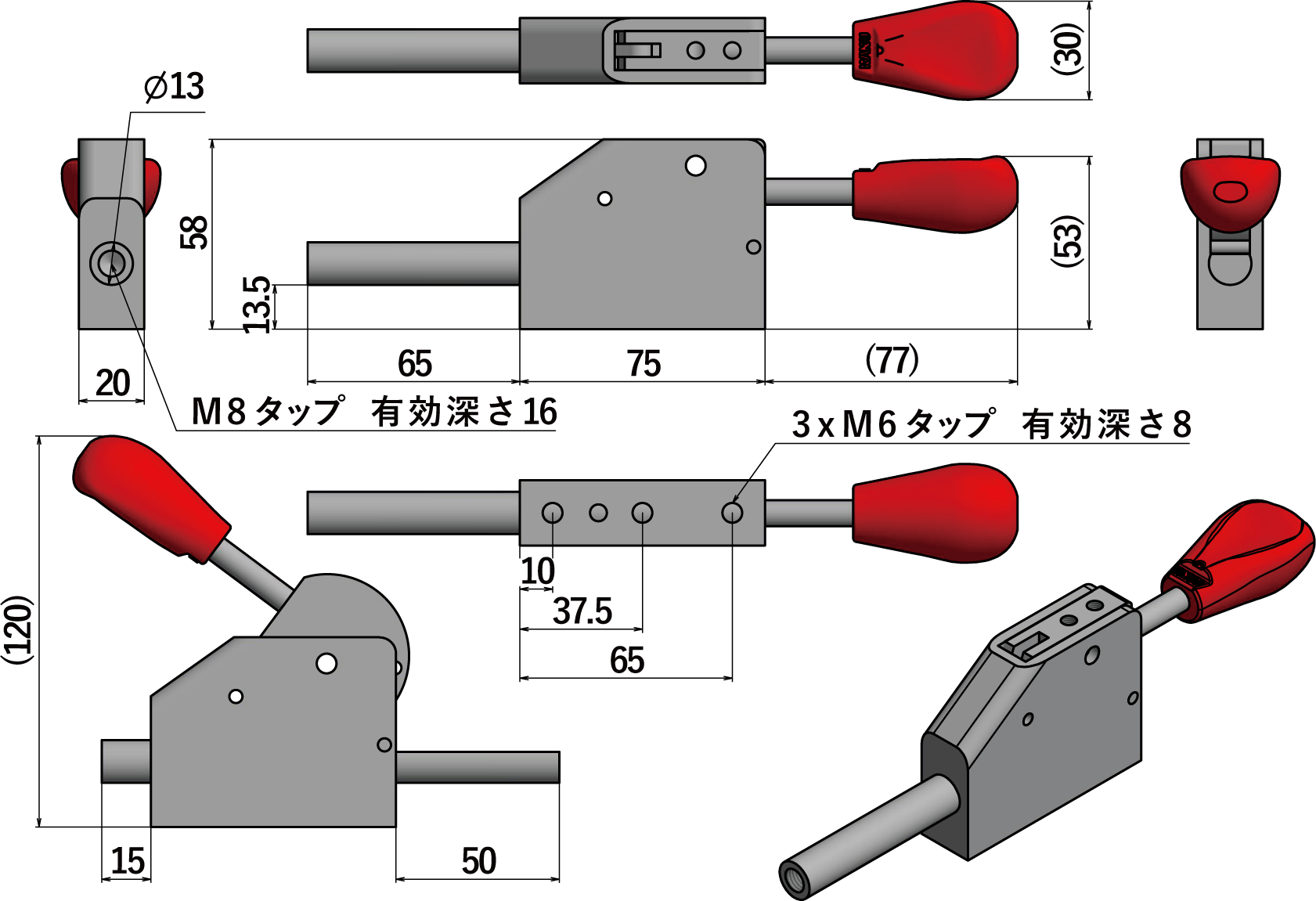

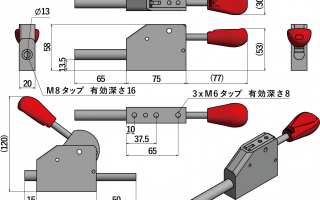

CAD data

DXF(2D) STEP IGES

Category	Dual Clamp
Model Number	YSP-50ST
Weight	416g
Holding Capacity	3.0kN(300kgf)
Material	Aluminum+Stainless Steel+Others Materials
Mounting Method	Flange Base
Surface finish	Body：Aluminum、others：Stainless Steel（Surface is untreated）、Grip:Plastic(P.P)

Straight Line
●Feature
Dual clamp realizes high safety and high performance by having a cam mechanism in addition to toggle clamp that can hold a sliding axis by cam.
Dual Clamp have been successfully tested for more than 1 million cycles and hold a workpiece stably for long time that reduce the cost of replacement.
There is a version with safety lock to prevent unclamp by vibration, backlash and mis-operation.
*The grip has been developed based on ergonomics fits to hands and reduce physical burden.
*Need to adjust the bolt length before use.
*Do not use in lathe/turning and at high tempareture as welding.
●Caution
The holding capacity is for reference.
The holding capacity decrease toward the tip of clamp arm.
Do not give the shock, vibration and internal pressure which causes a failure.
Caution to pinch the fingers.
