Downward Pressure Clamp

No.38CS-2S (Hold down clamp (Horizontal Handle))

Weight 220g

Holding Capacity 2.5kN(250kgf)
No.38CL-2S (Hold down clamp (Horizontal Handle))

Weight 500g

Holding Capacity 2.8kN(280kgf)
No.42S-2S (Hold down clamp (Vertical Handle))

Weight 370g

Holding Capacity 1.5kN(150kgf)
No.42P-2S (Hold down clamp (Vertical Handle))

Weight 370g

Holding Capacity 1.5kN(150kgf)
No.39 (Hold down clamp (Vertical Handle))

Weight 1170g

Holding Capacity 3.0kN(300kg)

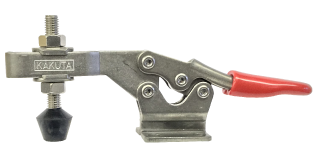

No.HH450-2S (Hold down clamp (Horizontal Handle))

Weight 255g

Holding Capacity 2.4kN(240kgf) （Maximum Value when using hexagon Bolts.）
No.HH350-2S (Hold down clamp (Horizontal Handle))

Weight 120g

Holding Capacity 0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

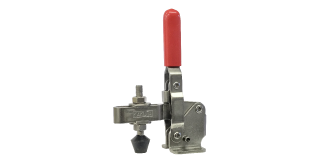

No.HV450-2S (Hold down clamp (Vertical Handle))

Weight 334g

Holding Capacity 2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

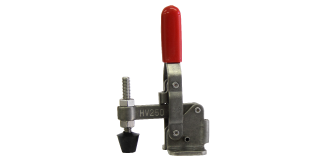

No.HV250-2S (Hold down clamp (Vertical Handle))

Weight 145g

Holding Capacity 0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

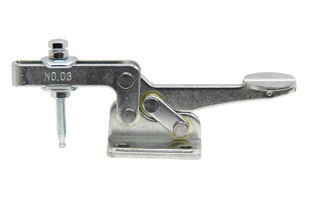

No.03-2S (Hold down clamp (Horizontal Handle))

Weight 95g

Holding Capacity 0.3kN(30kgf)

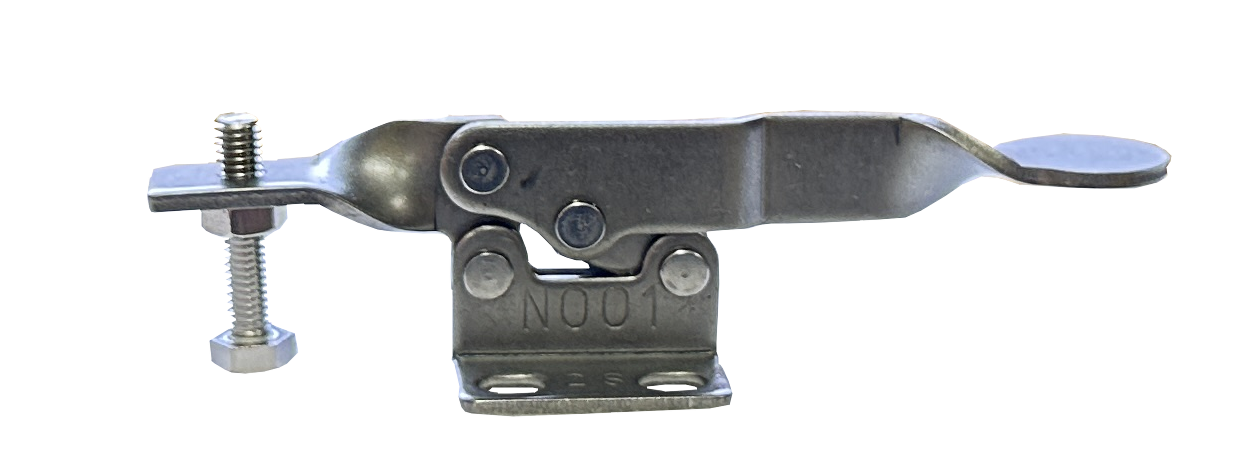

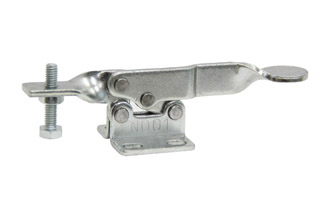

No.01-2S (Hold down clamp (Horizontal Handle))

Weight 30g

Holding Capacity 0.2kN(20kgf)
No.HV351B (Hold down clamp (Vertical Handle))

Weight 352g

Holding Capacity 2.55kN(255kgf)　（Maximum Value when using hexagon Bolts.）

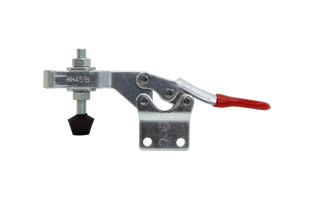

No.HH451B (Hold down clamp (Horizontal Handle))

Weight 276g

Holding Capacity 2.4kN（240kgf）（Maximum Value when using hexagon Bolts.）

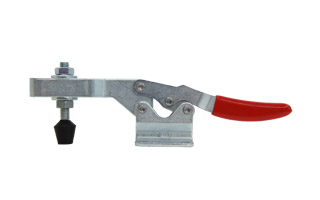

No.HH550 (Hold down clamp (Horizontal Handle))

Weight 685g

Holding Capacity 3.4kN（340kgf）（Maximum Value when using hexagon Bolts.）

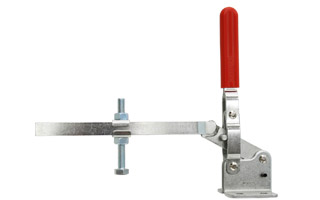

No.J-2-B (Hold down clamp (Vertical Handle))

Weight 1490g

Holding Capacity 1.0～3.7kN（100～370kgf)

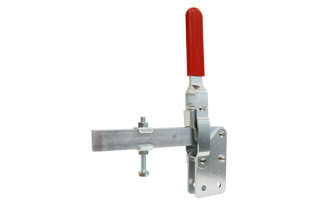

No.X17 (Hold down clamp (Vertical Handle))

Weight 1940g

Holding Capacity 3.5kN(350kgf)

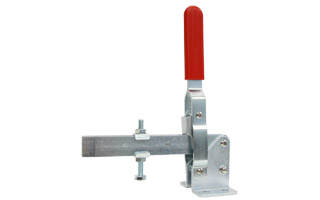

No.X14 (Hold down clamp (Vertical Handle))

Weight 1930g

Holding Capacity 3.5kN(350kg)
NO.X16 (Hold down clamp (Vertical Handle))

Weight 1305g

Holding Capacity 3.0kN(300kgf)
No.X13 (Hold down clamp (Vertical Handle))

Weight 1305g

Holding Capacity 3.0kN(300kgf)
No.X15 (Hold down clamp (Vertical Handle))

Weight 900g

Holding Capacity 2.0kN(200kgf)

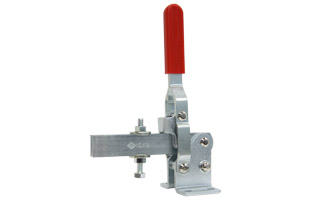

No.X12 (Hold down clamp (Vertical Handle))

Weight 890g

Holding Capacity 2.0kN(200kgf)

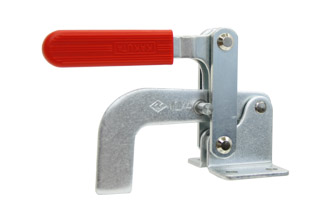

No.X4 (Hold down clamp (Vertical Handle))

Weight 620g

Holding Capacity 2.0kN(2.0kgf)
No.131 (Hold down clamp (Vertical Handle))

Weight 1585g

Holding Capacity 3.5kN(350kgf)
No.130 (Hold down clamp (Vertical Handle))

Weight 685g

Holding Capacity 2.5kN(250kg)

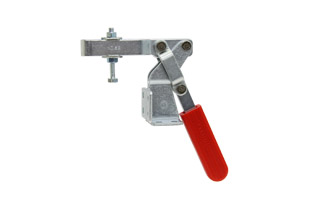

No.82 (Hold down clamp (Vertical Handle))

Weight 405g

Holding Capacity 1.0kN(100kgf)

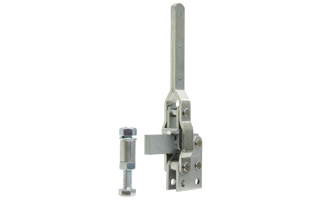

No.53B (Hold down clamp (Vertical Handle))

Weight 1355g

Holding Capacity 3.5kN(350kgf)
No.53A (Hold down clamp (Vertical Handle))

Weight 1140g

Holding Capacity 4.0kN(400kgf)

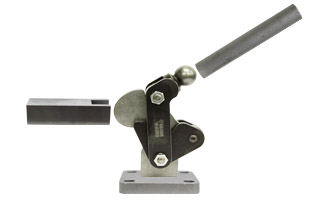

Variclamp No.3 (Hold down clamp (Vertical Handle))

Weight 4150g

Holding Capacity 10.0kN(1,000kgf)

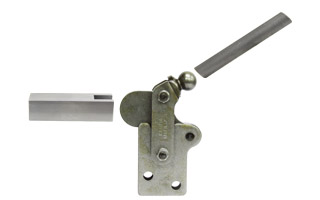

Variclamp No.2SB (Hold down clamp (Vertical Handle))

Weight 1990g

Holding Capacity 5.0kN(500kgf)

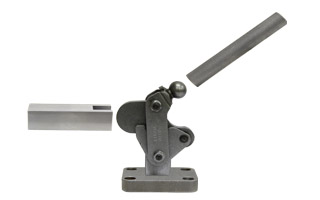

Variclamp No.2 (Hold down clamp (Vertical Handle))

Weight 2265g

Holding Capacity 5.0kN(500kgf)

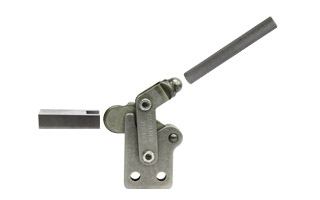

Variclamp No.1SB (Hold down clamp (Vertical Handle))

Weight 745g

Holding Capacity 2.0kN(200kgf)

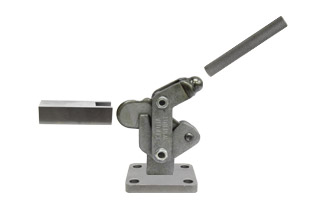

Variclamp No.1 (Hold down clamp (Vertical Handle))

Weight 835g

Holding Capacity 2.0kN(200kgf)
No.46A (Hold down clamp (Vertical Handle))

Weight 800g

Holding Capacity 2.8kN(280kgf)

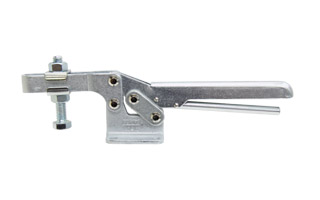

No.41C (Hold down clamp (Horizontal Handle))

Weight 1025g

Holding Capacity 3.5kN(350kgf)
No.38RKL (Hold down clamp (Horizontal Handle))

Weight 925g

Holding Capacity 5.0kN(500kgf)

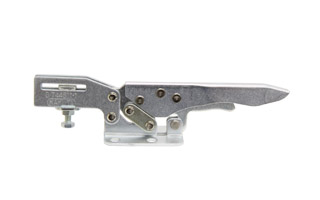

No.38RKS (Hold down clamp (Horizontal Handle))

Weight 310g

Holding Capacity 2.5kN(250kgf)
No.HS10 (Hold down clamp (Vertical Handle))

Weight 20ｇ

Holding Capacity 0.2kN(20kgf)

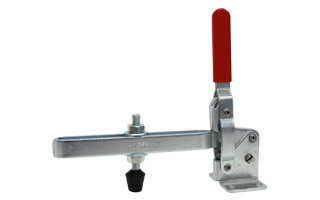

No.HV653-XL (Hold down clamp (Vertical Handle))

Weight 760ｇ

Holding Capacity 3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）

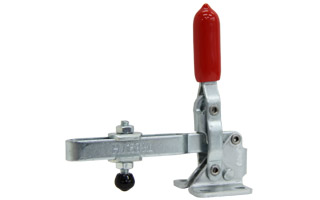

No.HV153XL (Hold down clamp (Vertical Handle))

Weight 70g

Holding Capacity 0.45kN(45kgf)　（Maximum Value when using hexagon Bolts.）
No.45 (Hold down clamp (Vertical Handle))

Weight 1265g

Holding Capacity 2.8kN(280kgf)

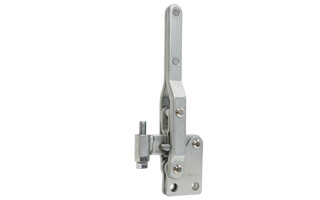

No.46B (Hold down clamp (Vertical Handle))

Weight 768g

Holding Capacity 3.5kN(350kgf)

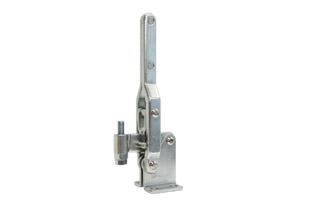

No.44B (Hold down clamp (Vertical Handle))

Weight 835g

Holding Capacity 3.5kN(350kgf)

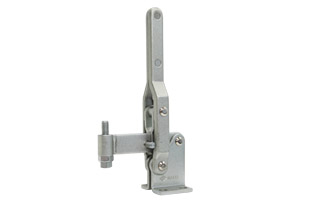

No.44A (Hold down clamp (Vertical Handle))

Weight 870g

Holding Capacity 2.8kN(280kgf)
No.43B (Hold down clamp (Horizontal Handle))

Weight 500g

Holding Capacity 2.8kN(280kgf)
No.41E (Hold down clamp (Vertical Handle))

Weight 810g

Holding Capacity 3.0kN(300kgf)

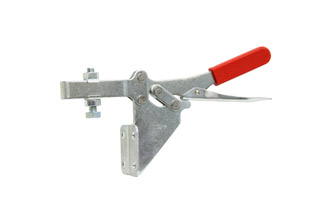

No.38PL (Hold down clamp (Horizontal Handle))

Weight 655g

Holding Capacity 3.0kN(300kgf)
No.38PS (Hold down clamp (Horizontal Handle))

Weight 430g

Holding Capacity 2.8kN(280kgf)

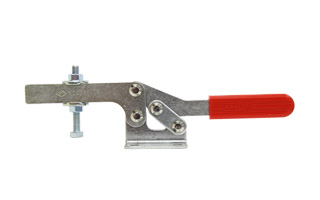

No.43A (Hold down clamp (Horizontal Handle))

Weight 500g

Holding Capacity 2.8kN(280kgf)

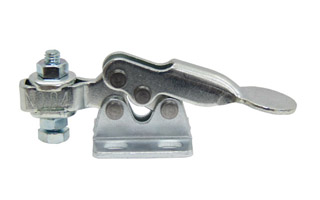

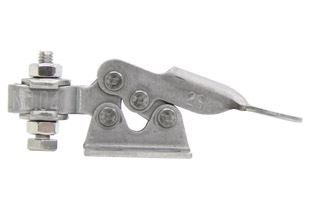

No.04 (Hold down clamp (Horizontal Handle))

Weight 35g

Holding Capacity 0.3kN(30kgf)

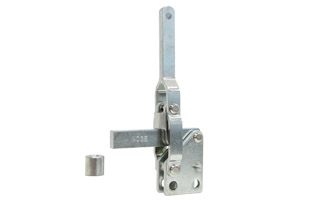

No.35 (Hold down clamp (Vertical Handle))

Weight 435g

Holding Capacity 1.5kN(150kgf)
No.34 (Hold down clamp (Vertical Handle))

Weight 2330g

Holding Capacity 5.0kN(500kgf)

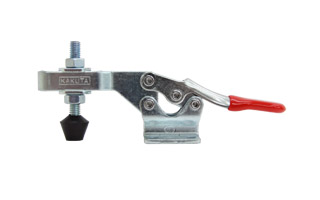

No.HH450 (Hold down clamp (Horizontal Handle))

Weight 275g

Holding Capacity 2.4kN(240kgf) （Maximum Value when using hexagon Bolts.）
No.HH350-H (Hold down clamp (Horizontal Handle))

Weight 130g

Holding Capacity 0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

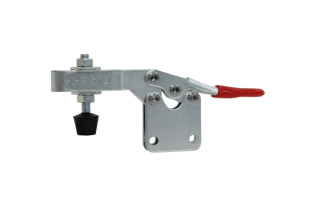

No.HH351B (Hold down clamp (Horizontal Handle))

Weight 125g

Holding Capacity 0.9kN(90kgf) （Maximum Value when using hexagon Bolts.）
No.HH350 (Hold down clamp (Horizontal Handle))

Weight 125g

Holding Capacity 0.9kN(90kgf)（Maximum Value when using hexagon Bolts.）

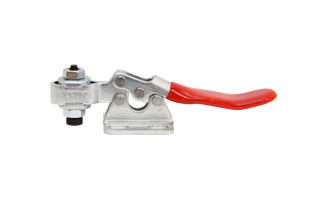

No.HH250-H (Hold down clamp (Horizontal Handle))

Weight 32g

Holding Capacity 0.27kN(27kgf)

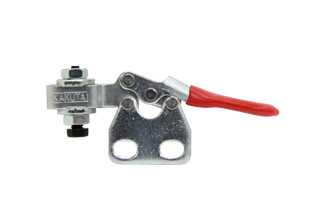

No.HH251B (Hold down clamp (Horizontal Handle))

Weight 30g

Holding Capacity 0.27kN(27kgf)

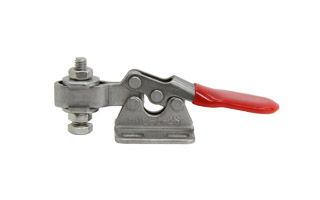

No.HH250-2S (Hold down clamp (Horizontal Handle))

Weight 30g

Holding Capacity 0.27kN(27kgf)

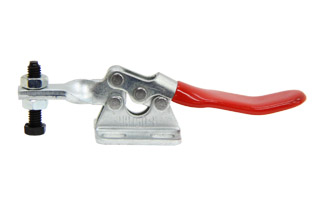

No.HH150-H (Hold down clamp (Horizontal Handle))

Weight 30g

Holding Capacity 0.27kN(27kgf)

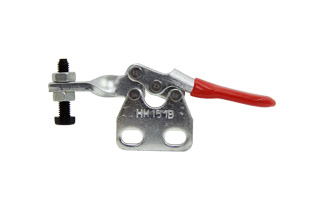

No.HH151B (Hold down clamp (Horizontal Handle))

Weight 25g

Holding Capacity 0.27kN(27kgf)

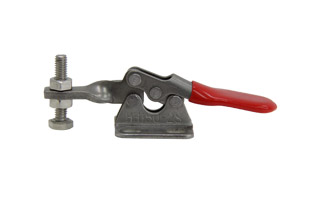

No.HH150-2S (Hold down clamp (Horizontal Handle))

Weight 25g

Holding Capacity 0.27kN(27kgf)

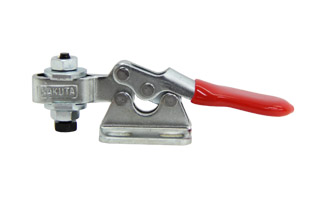

No.HH250 (Hold down clamp (Horizontal Handle))

Weight 30g

Holding Capacity 0.27kN(27kgf)

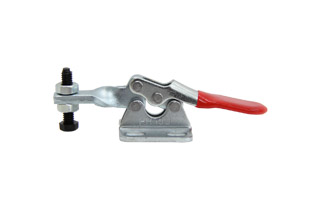

No.HH150 (Hold down clamp (Horizontal Handle))

Weight 25g

Holding Capacity 0.27kN(27kgf)

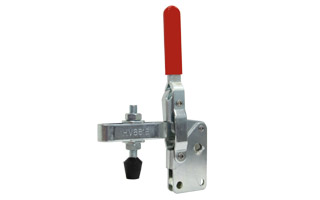

No.HV651B (Hold down clamp (Vertical Handle))

Weight 665g

Holding Capacity 3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）
No.HV650 (Hold down clamp (Vertical Handle))

Weight 660g

Holding Capacity 3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）

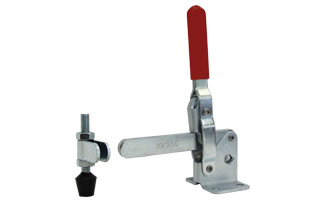

No.HV550 (Hold down clamp (Vertical Handle))

Weight 675g

Holding Capacity 3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）

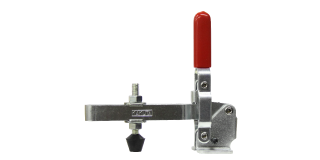

No.HV453-XL (Hold down clamp (Vertical Handle))

Weight 395g

Holding Capacity 2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）
No.HV451B (Hold down clamp (Vertical Handle))

Weight 350g

Holding Capacity 2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）
No.HV450 (Hold down clamp (Vertical Handle))

Weight 353g

Holding Capacity 2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

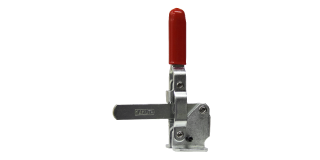

No.HV350 (Hold down clamp (Vertical Handle))

Weight 356g

Holding Capacity 2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

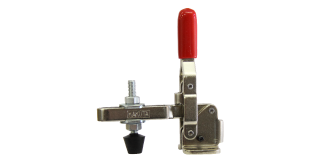

No.HV253UL (Hold down clamp (Vertical Handle))

Weight 170g

Holding Capacity 0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

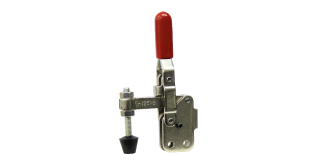

No.HV251B (Hold down clamp (Vertical Handle))

Weight 155g

Holding Capacity 0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

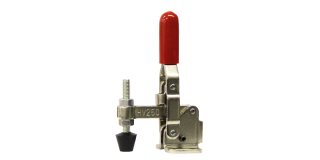

No.HV250 (Hold down clamp (Vertical Handle))

Weight 155g

Holding Capacity 0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

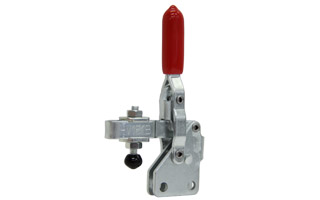

No.HV151B (Hold down clamp (Vertical Handle))

Weight 60g

Holding Capacity 0.45kN(45kgf)　（Maximum Value when using hexagon Bolts.）

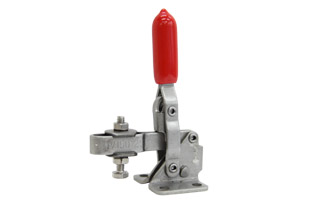

No.HV150-2S (Hold down clamp (Vertical Handle))

Weight 65g

Holding Capacity 0.45kN(45kgf)

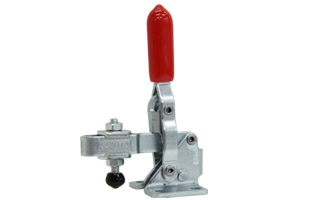

No.HV150 (Hold down clamp (Vertical Handle))

Weight 60g

Holding Capacity 0.45kN(45kgf) （Maximum Value when using hexagon Bolts.）

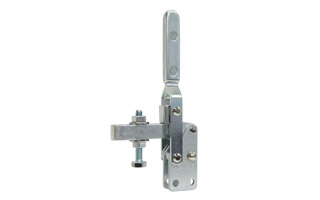

No.41K (Hold down clamp (Vertical Handle))

Weight 810g

Holding Capacity 3.0kN(300kgf)
No.41F (Hold down clamp (Vertical Handle))

Weight 1015g

Holding Capacity 3.0kN(300kgf)

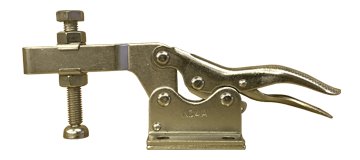

No.41A (Hold down clamp (Horizontal Handle))

Weight 510g

Holding Capacity 2.5kN(250kgf)
No.41BL (Hold down clamp (Vertical Handle))

Weight 2260g

Holding Capacity 3.0kN(300kgf)

No.41BSM (Hold down clamp (Vertical Handle))

Weight 1365g

Holding Capacity 3.0kN(300kgf)

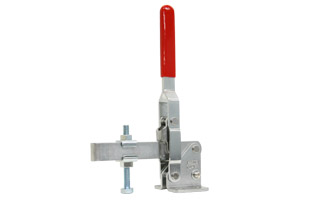

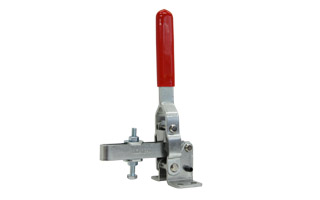

No.41BM (Hold down clamp (Vertical Handle))

Weight 1290g

Holding Capacity 3.0kN(300kgf)
No.41BSS (Hold down clamp (Vertical Handle))

Weight 395g

Holding Capacity 2.0kN(200kgf)

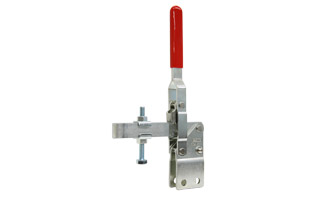

No.41BS (Hold down clamp (Vertical Handle))

Weight 400g

Holding Capacity 2.0kN(200kgf)

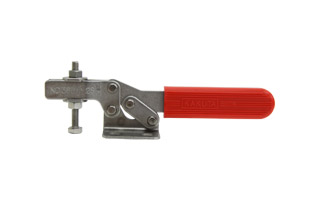

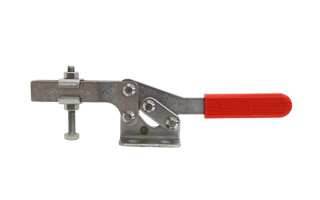

No.38BL-2S (Hold down clamp (Horizontal Handle))

Weight 450g

Holding Capacity 2.8kN(280kgf)
No.42S (Hold down clamp (Vertical Handle))

Weight 370g

Holding Capacity 1.5kN(150kgf)

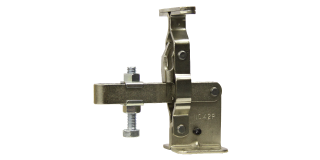

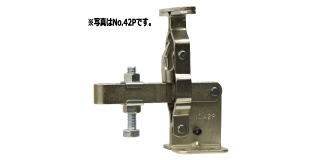

No.42P (Hold down clamp (Vertical Handle))

Weight 370g

Holding Capacity 1.5kN(150kgf)

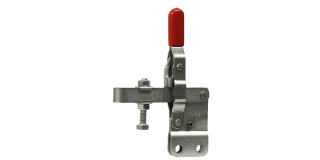

No.42K-2S (Hold down clamp (Vertical Handle))

Weight 355g

Holding Capacity 1.5kN(150kgf)

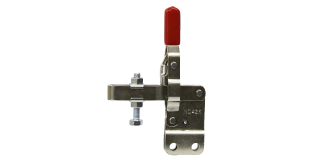

No.42K (Hold down clamp (Vertical Handle))

Weight 355g

Holding Capacity 1.5kN(150kgf)

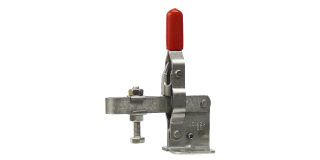

No.42A-2S (Hold down clamp (Vertical Handle))

Weight 355g

Holding Capacity 1.5kN(150kgf)

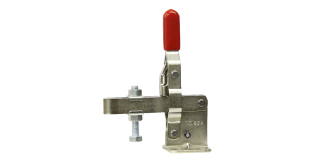

No.42A (Hold down clamp (Vertical Handle))

Weight 360g

Holding Capacity 1.5kN(150kgf)

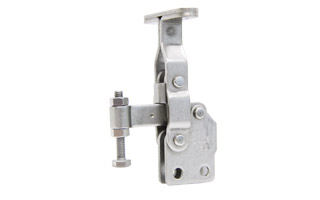

No.40S-2S (Hold down clamp (Vertical Handle))

Weight 220g

Holding Capacity 1.0kN(100kgf)

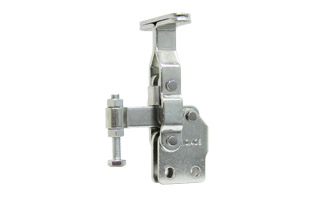

No.40S (Hold down clamp (Vertical Handle))

Weight 225g

Holding Capacity 1.0kN(100kgf)
No.40P-2S (Hold down clamp (Vertical Handle))

Weight 220g

Holding Capacity 1.0kN(100kgf)
No.40P (Hold down clamp (Vertical Handle))

Weight 225g

Holding Capacity 1.0kN(100kgf)

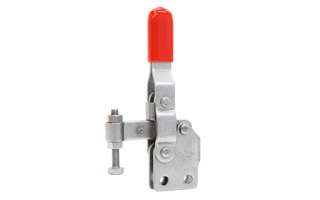

No.40K-2S (Hold down clamp (Vertical Handle))

Weight 205g

Holding Capacity 1.0kN(100kgf)

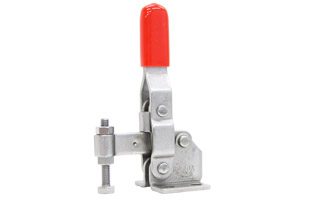

No.40A-2S （Hold down clamp (Vertical Handle))

Weight 205g

Holding Capacity 1.0kN(100kgf)

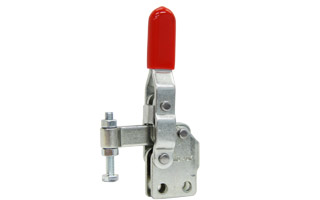

No.40K (Hold down clamp (Vertical Handle))

Weight 210g

Holding Capacity 1.0kN(100kgf)

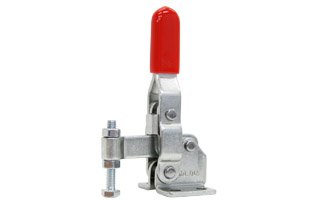

No.40A (Hold down clamp (Vertical Handle)）

Weight 210g

Holding Capacity 1.0kN(100kgf)
No.38DS (Hold down clamp (Horizontal Handle))

Weight 720g

Holding Capacity 5.0kN(500kgf)

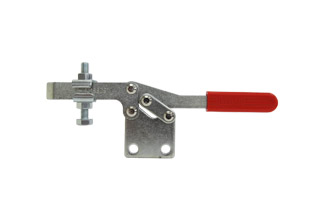

No.38D (Hold down clamp (Horizontal Handle))

Weight 740g

Holding Capacity 5.0kN(500kgf)

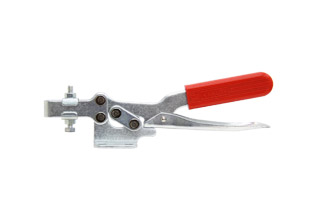

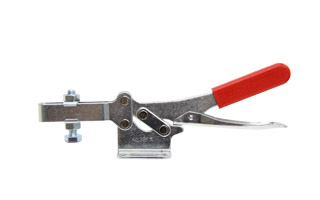

No.38KL (Hold down clamp (Horizontal Handle))

Weight 555g

Holding Capacity 3.0kN(300kgf)
No.38KS (Hold down clamp (Horizontal Handle))

Weight 380g

Holding Capacity 2.8kN(280kgf)

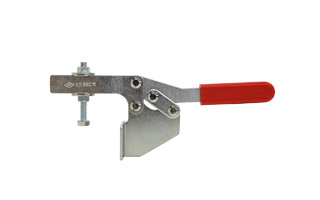

No.38CL (Hold down clamp (Horizontal Handle))

Weight 500g

Holding Capacity 2.8kN(280kgf)

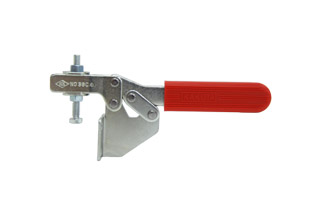

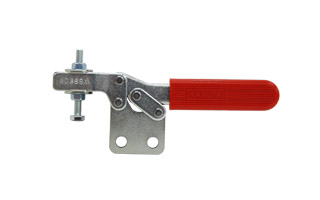

No.38CS (Hold down clamp (Horizontal Handle))

Weight 220g

Holding Capacity 2.5kN(250kgf)

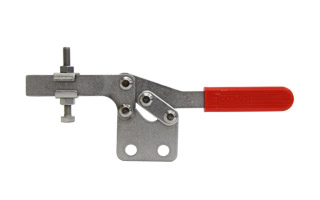

No.38SL-2S (Hold down clamp (Horizontal Handle))

Weight 450g

Holding Capacity 2.8kN(280kgf)
No.38SL (Hold down clamp (Horizontal Handle))

Weight 445g

Holding Capacity 2.8kN(280kgf)

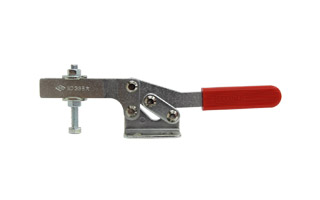

No.38BL (Hold down clamp (Horizontal Handle))

Weight 445g

Holding Capacity 2.8kN(280kgf)

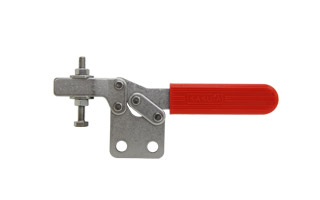

No.38SS-2S (Hold down clamp (Horizontal Handle))

Weight 180g

Holding Capacity 2.5kN(250kgf)

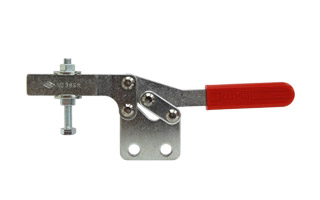

No.38SS (Hold down clamp (Horizontal Handle))

Weight 205g

Holding Capacity 2.5kN(250kgf)
No.38BS-2S (Hold down clamp (Horizontal Handle))

Weight 185g

Holding Capacity 2.5kN(250kgf)
No.38BS (Hold down clamp (Horizontal Handle))

Weight 205g

Holding Capacity 2.5kN(250kgf)

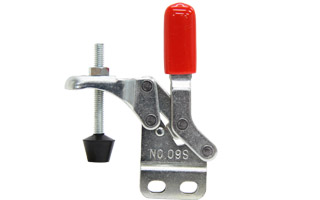

No.09S (Hold down clamp (Vertical Handle))

Weight 45g

Holding Capacity 0.3kN(30kgf)
No.09-2S (Hold down clamp (Vertical Handle))

Weight 45g

Holding Capacity 0.3kN(30kgf)

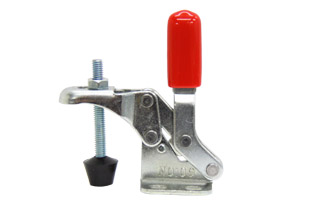

No.09 (Hold down clamp (Vertical Handle))

Weight 45g

Holding Capacity 0.3kN(30kgf)
No.08S (Hold down clamp (Horizontal Handle))

Weight 45g

Holding Capacity 0.3kN(30kgf)

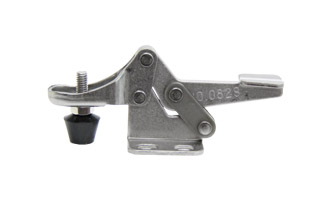

No.08-2S (Hold down clamp (Horizontal Handle))

Weight 40g

Holding Capacity 0.3kN(30kgf)

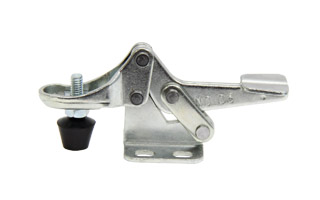

No.08 (Hold down clamp (Horizontal Handle))

Weight 45g

Holding Capacity 0.3kN(30kgf)
No.04-2S (Hold down clamp (Horizontal Handle))

Weight 30g

Holding Capacity 0.3kN(30kgf)
No.03S (Hold down clamp (Horizontal Handle))

Weight 85g

Holding Capacity 0.3kN(30kgf)
No.03 (Hold down clamp (Horizontal Handle))

Weight 100g

Holding Capacity 0.3kN(30kgf)
No.01 (Hold down clamp (Horizontal Handle))

Weight 35g

Holding Capacity 0.2kN(20kgf)

Weight	220g
Holding Capacity	2.5kN(250kgf)

Weight	500g
Holding Capacity	2.8kN(280kgf)

Weight	370g
Holding Capacity	1.5kN(150kgf)

Weight	370g
Holding Capacity	1.5kN(150kgf)

Weight	1170g
Holding Capacity	3.0kN(300kg)

Weight	255g
Holding Capacity	2.4kN(240kgf) （Maximum Value when using hexagon Bolts.）

Weight	120g
Holding Capacity	0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

Weight	334g
Holding Capacity	2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

Weight	145g
Holding Capacity	0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

Weight	95g
Holding Capacity	0.3kN(30kgf)

Weight	30g
Holding Capacity	0.2kN(20kgf)

Weight	352g
Holding Capacity	2.55kN(255kgf)　（Maximum Value when using hexagon Bolts.）

Weight	276g
Holding Capacity	2.4kN（240kgf）（Maximum Value when using hexagon Bolts.）

Weight	685g
Holding Capacity	3.4kN（340kgf）（Maximum Value when using hexagon Bolts.）

Weight	1490g
Holding Capacity	1.0～3.7kN（100～370kgf)

Weight	1940g
Holding Capacity	3.5kN(350kgf)

Weight	1930g
Holding Capacity	3.5kN(350kg)

Weight	1305g
Holding Capacity	3.0kN(300kgf)

Weight	1305g
Holding Capacity	3.0kN(300kgf)

Weight	900g
Holding Capacity	2.0kN(200kgf)

Weight	890g
Holding Capacity	2.0kN(200kgf)

Weight	620g
Holding Capacity	2.0kN(2.0kgf)

Weight	1585g
Holding Capacity	3.5kN(350kgf)

Weight	685g
Holding Capacity	2.5kN(250kg)

Weight	405g
Holding Capacity	1.0kN(100kgf)

Weight	1355g
Holding Capacity	3.5kN(350kgf)

Weight	1140g
Holding Capacity	4.0kN(400kgf)

Weight	4150g
Holding Capacity	10.0kN(1,000kgf)

Weight	1990g
Holding Capacity	5.0kN(500kgf)

Weight	2265g
Holding Capacity	5.0kN(500kgf)

Weight	745g
Holding Capacity	2.0kN(200kgf)

Weight	835g
Holding Capacity	2.0kN(200kgf)

Weight	800g
Holding Capacity	2.8kN(280kgf)

Weight	1025g
Holding Capacity	3.5kN(350kgf)

Weight	925g
Holding Capacity	5.0kN(500kgf)

Weight	310g
Holding Capacity	2.5kN(250kgf)

Weight	20ｇ
Holding Capacity	0.2kN(20kgf)

Weight	760ｇ
Holding Capacity	3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）

Weight	70g
Holding Capacity	0.45kN(45kgf)　（Maximum Value when using hexagon Bolts.）

Weight	1265g
Holding Capacity	2.8kN(280kgf)

Weight	768g
Holding Capacity	3.5kN(350kgf)

Weight	835g
Holding Capacity	3.5kN(350kgf)

Weight	870g
Holding Capacity	2.8kN(280kgf)

Weight	500g
Holding Capacity	2.8kN(280kgf)

Weight	810g
Holding Capacity	3.0kN(300kgf)

Weight	655g
Holding Capacity	3.0kN(300kgf)

Weight	430g
Holding Capacity	2.8kN(280kgf)

Weight	500g
Holding Capacity	2.8kN(280kgf)

Weight	35g
Holding Capacity	0.3kN(30kgf)

Weight	435g
Holding Capacity	1.5kN(150kgf)

Procudt List »

Search Toggle Clamp

Catalogue

Toggle Clamp
（PDF）
Dual Clamp
（PDF）
Toggle Handbook

KAKUTA Toggle clamp

PRODUCT

Downward Pressure Clamp

Search Toggle Clamp

Catalogue

Toggle Clamp
（PDF）

Dual Clamp
（PDF）

Toggle Handbook

Weight	275g
Holding Capacity	2.4kN(240kgf) （Maximum Value when using hexagon Bolts.）

Weight	130g
Holding Capacity	0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

Weight	125g
Holding Capacity	0.9kN(90kgf) （Maximum Value when using hexagon Bolts.）

Weight	665g
Holding Capacity	3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）

Weight	660g
Holding Capacity	3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）

Weight	675g
Holding Capacity	3.4kN(340kgf)　（Maximum Value when using hexagon Bolts.）

Weight	395g
Holding Capacity	2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

Weight	350g
Holding Capacity	2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

Weight	353g
Holding Capacity	2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

Weight	356g
Holding Capacity	2.25kN(225kgf)　（Maximum Value when using hexagon Bolts.）

Weight	170g
Holding Capacity	0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

Weight	155g
Holding Capacity	0.9kN(90kgf)　（Maximum Value when using hexagon Bolts.）

Weight	60g
Holding Capacity	0.45kN(45kgf) （Maximum Value when using hexagon Bolts.）

PRODUCT

Downward Pressure Clamp

Search Toggle Clamp

Catalogue

Toggle Clamp（PDF）

Dual Clamp（PDF）

Toggle Handbook

Toggle Clamp
（PDF）

Dual Clamp
（PDF）
